Depositor w/Integrated Mixer
Model DVM2000

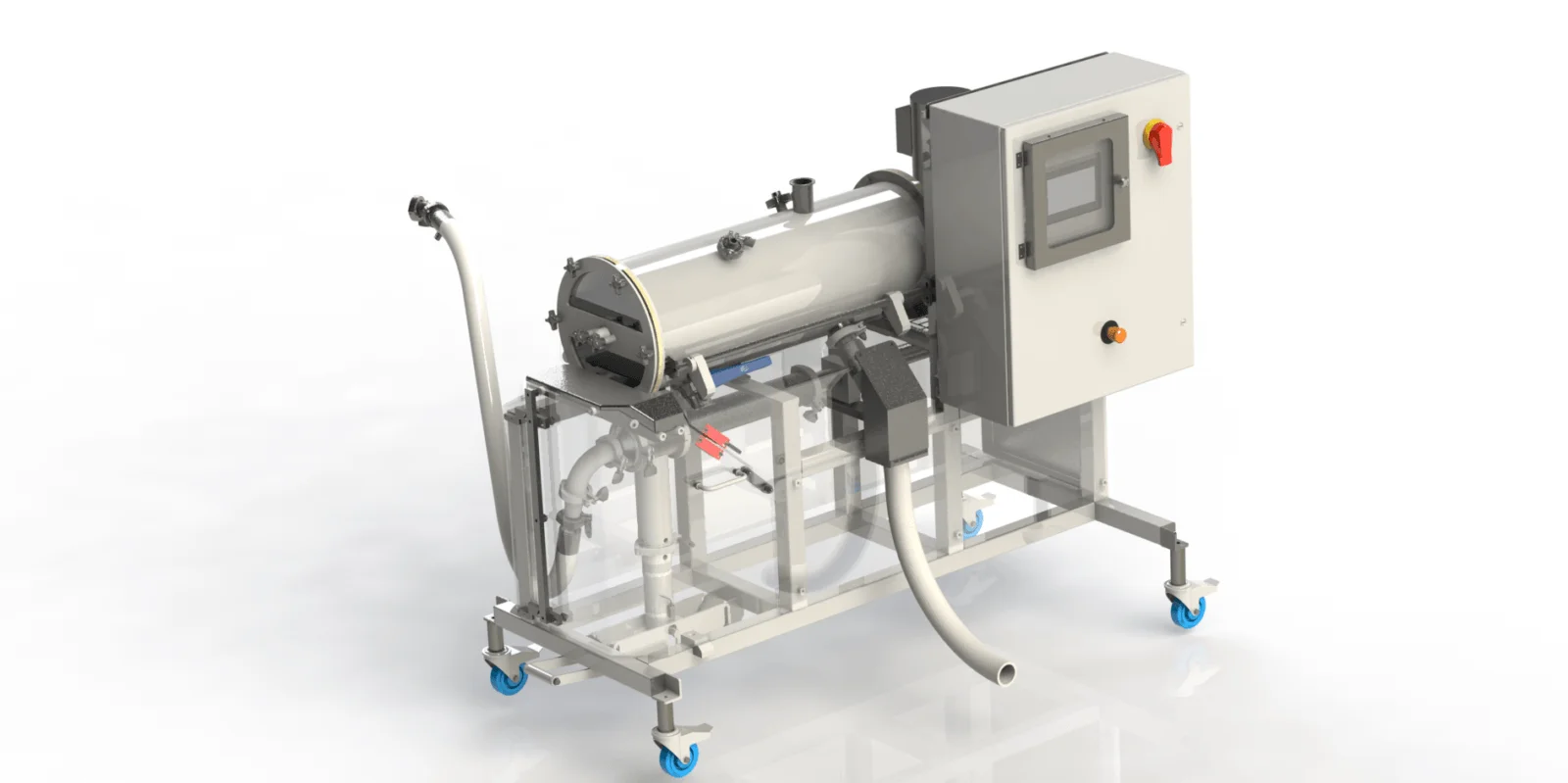

The DVM2000 is a volumetric piston filler/depositor with a mixing hopper designed specifically to maintain homogeneity in a product containing liquid and solid like chunky soup or vinaigrette base prepared salad.



The DVM2000 is an automatic volumetric piston filler, specifically designed for fresh food manufacturer, for products ranging from liquid to semi-viscous. In particular, when the products contain chunks, they are neither cut nor smashed.



This piston filler fills hot products as well as cold products.

Category:

Products fillers and mixers




Features

High speed: Up to: 60 for 1 lbs tubs, and 30 for 5 lbs buckets

High accuracy: ± two hundredth of a pound

PLC controlled

HMI/operator interface, with status, set up, a maintenance screen, and production statistics

Parts in contact with the product are made of stainless steel 316 and other CFIA & USDA approved material

Cleaning friendly: easy to dismantle and to wash within 10 minutes

Washdown Construction: simple open design. NEMA 4X wash down fiberglass control box, with temperature control when use in cold environment

Simple & quick product changeover

Options

1 bigger dispensing valve of 3`` diameter

Special dispensing valve: semi-viscous or liquids, horizontal or vertical, linear or rotary, bottom fill, etc.

1 level sensor to control the pump that feeds the hopper, for when this is the case

1 PLC & 1 HMI for when the filler is purchased as a stand alone machine

Autonomous version package: Height adjustable dispensing valve holder, stainless steel table, set of adjustable guide to quickly position the empty container at the filling position

Specifications

Range: 4 oz to 5.5 lbs per cycle, with built-in multi-cycles capability

Maximum speed per minute, up to: 60 for 1 lbs tubs, and 30 for 5 lbs buckets

Filling accuracy: ± two hundredth of a pound

Dispensing valve diameter: 2`` by default or 3`` in option

Hopper Capacity: 200lbs

Electricity: 115 VAC, 5 amps, 60 Hz

Compressed air: up to 6 cfm @ 100 psi

Applications

viscous & semi-viscous

with chuncks
