Compact Tub Filling and Lidding Line: Denest, Fill and Lid in Under 16 Feet

Compact Tub Filling and Lidding Line for Tight Floor Space
Our client in the prepared foods business needed to automate hte denesting, filling & lidding of their spreadable product without expanding their production area. Our modular layout allowed us to place each station tightly along one the conveyor, with no wasted transfer space between machines.
This type of line can easily run as a stand-alone cell or connect to existing upstream and downstream equipment depending on requirements.
How the Line Works: Denest, Fill, Lid
- Denesting: Empty containers are separated from the stack and placed on the conveyor.
- Filling: The Unifiller depositor portions product into each container.

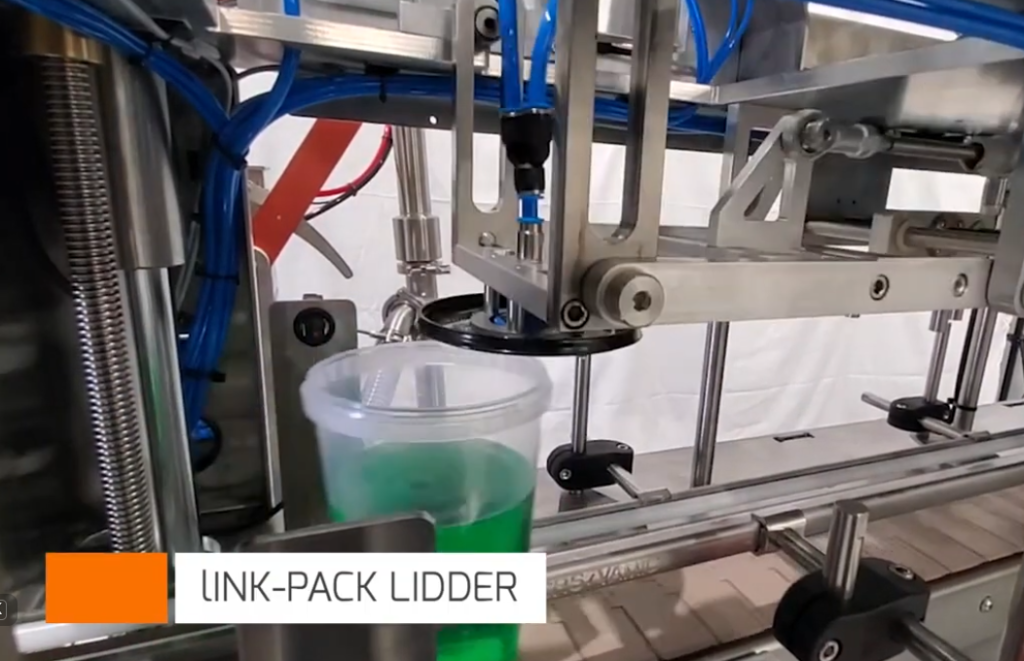

- Lid placement: An operator loads a stack of lids into the magazine. A suction-cup pick-and-place picks the lids one by one and sets each on a container.
- Lid closing: A roller closing head presses each snap-on lid shut. An air-reduction wheel pushes out trapped air as it closes.
Container Formats and Speeds
The lidder on this compact line is built for plastic containers from 250 ml to 1,000 ml with tamper-evident lids, and runs at up to 40 containers per minute. To change sizes, the operator selects the matching recipe on the HMI and makes a few manual adjustments. The whole changeover takes minutes.
The lidder also handles round, square and rectangular containers, among other shapes. A paint and coatings manufacturer in the US uses it to lid metal paint cans from half-pint to one-gallon sizes.
From Empty Tub to Lidded Tub: The 3 Modules
Automatic Container Denester
The line starts with an automatic denester. The operator loads one stack of empty tubs, and the denester unit separates and dispenses the containers. Using suction cups mounted on a linear actuator, it deposits the containers one at a time, upright onto the conveyor. This is a step still done by hand on small lines. Automating it removes one operator position and keeps the line fed at a steady rate. Format change requires an easy recipe recall from the HMI and a few manual adjustments, both performed in minutes.

Unifiller depositor (OEM integration)
For filling, we integrated a Unifiller depositor, an OEM partner we trust for portion accuracy on food products. The Econo Pro 1000 model with a drip-free nozzle and controled deposit start was a perfect straightforward solution for our client’s spreadable product. We synchronized the depositor with the conveyor and grippers, so each fill starts only when a container is held in position.

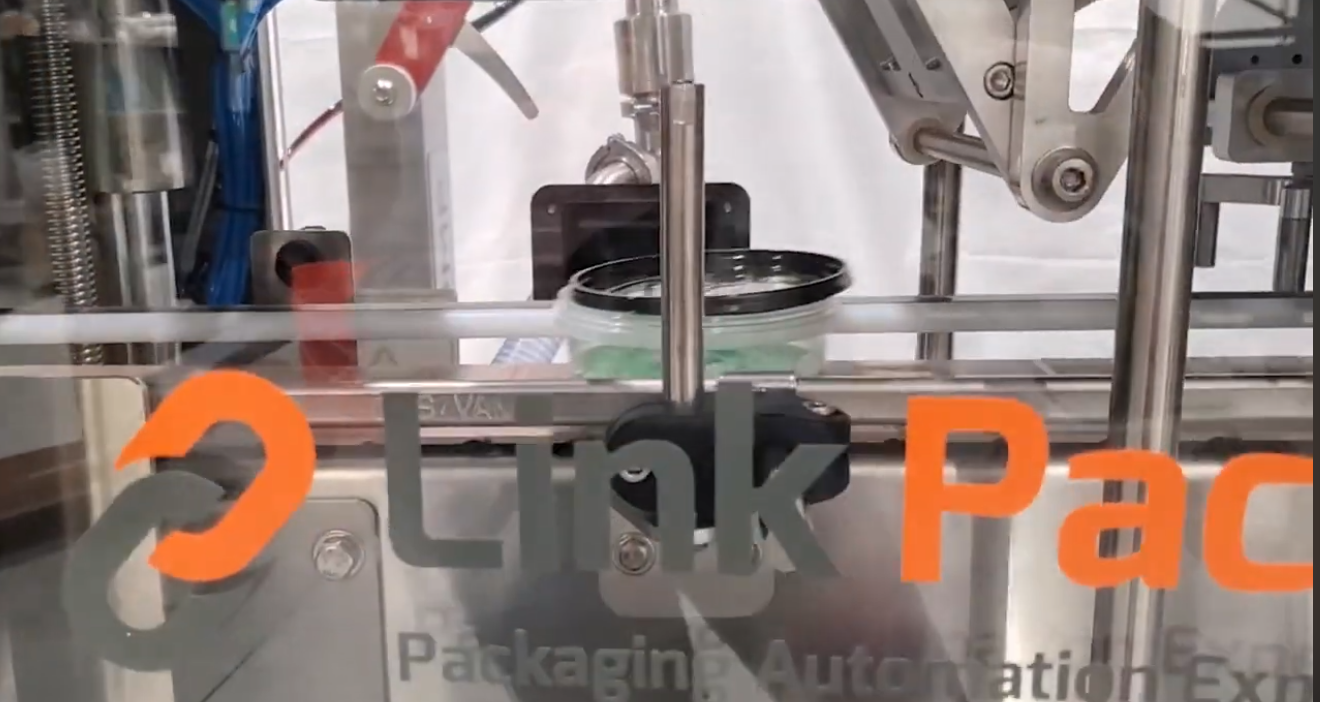

Automatic Snap-On Lidder
Link Pack designs and builds the lidder in Quebec. It’s simple to run: the operator’s only routine task is reloading the lid magazine. The roller closing head applies even pressure across the lid, so snap-on and tamper-evident lids close fully on every container. Designed to CSA Z432-16 standards for safeguarding of machinery, the electrical panel and components are inspected and certified by CSA before shipping, so the line arrives ready for your plant’s safety review.
5 Must Haves for a Tub Filling & Lidding Line
Compact footprint
Stations sized and spaced to fit your floor, not a catalogue layout.
Easy Parameter Setup
PLC & HMI for easy parameter recall for diverse packaging sizes.
Fast Changeover
Select the recipe on the HMI, make a few manual adjustments, and you're running a new size in minutes.
Secure lid closing
A suction-cup pick-and-place deposits lids before roller closing and air removal for snap-on and tamper-evident lids.
Trusted support
Installation, operator training and spare parts from the Link Pack team in Terrebonne, Quebec, in English or French.
Automated Solutions Consultation
At Link Pack, we aim to help our clients create an optimized product packaging machine with solutions ranging from primary packaging all the way to palletisation. What we do not manufacture is sourced from some of the most reputed OEMs in the world.
What sets us apart from our competitors is our true desire to provide you with modular solutions that “fit” your aspirations – not ours. For every project, we provide the technical support to ensure we are both successful. Contact us to start exploring what solutions can take you to the next level!
Request a free consultation today!
Frequently Asked Questions
What is a tub filling and lidding line?
It’s an automated packaging line that separates empty tubs from a stack, fills them with product, and places and closes the lids. It’s used for deli salads, dips, spreads, soups and similar foods. It can also be adapted for a variety of other containers, lids and products.
How much floor space does a denest, fill and lid line need?
This line fits in under 16 feet of linear space. The footprint usually depends on the number of stations, the filler type and how much buffer you need between them.
Can one lidder handle tubs and pails?
Generally speaking, this line can handle a range of sizes, and we always perform tests on your containers during the exploratory to analyse results.
Does the lidder work with tamper-evident lids?
Yes. It closes lids with or without a tamper-evident seal.
