Paint Can Labeling Machine

Link Pack

The Link-Pack Paint Can Labeler is an oriented wrap labeler explicitly adapted to apply pressure sensitive labels to 2 oz. – 1 gallon metal, plastic or hybrid paint cans. This wrap-around labeler works well on various cylindrical containers and offers the possibility to orient the containers before applying the labels.


Empty containers are placed on the labeler’s conveyor by hand or transferred from an upstream conveyor. The containers are spaced and then captured by a motorized 3-point aligner that rotates the containers on themselves to detect the handle’s ears. Once the system completes the container detection, the labels are applied to the entire circumference of the paint can and released. The fully wrapped containers are removed manually or transferred to a downstream conveyor for further processing.


This wrap-around can labeling machine labels 2 oz, 1 qt, 1 L, and 3.78 L container formats and is adaptable for use with other sizes and styles of cylindrical containers. The orientation function can be activated or deactivated from the touch screen as needed. Storing all electronic settings of the labeler for each format allows for quick and easy adjustments.


Labelers / Orientation / Wrap / Paint Cans

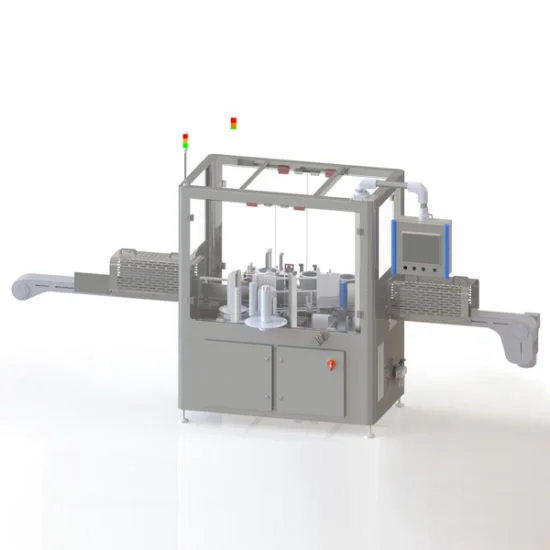

    Oriented Wrap Labeler


    High quality construction and 304 stainless steel frame mounted on adjustable legs

    Optical sensor for handle anchor detection

    Allen Bradley PLC & HMI

    Herma 500 servo label head

    Recipe management via touch screen

    Adjustable width guides for different container sizes

    6'' wide X 10' long motorized conveyor

    Quick Container Size Changeovers

    Ready to integrate TTO or Laser coder


    Coder (thermal transfer or laser)

    Vision inspection (OCR/OCV)

    Tall labels (240mm or 300mm instead of 160mm)

    Extended length conveyor

    Redundant system (by adding a second label head)

    Reject system for faulty containers


    Dedicated to round containers

    208V, 1ph, 60Hz / 24VDC

    Pneumatic: 90 PSI @ 4 SCFM clean dry air

    300mm (11.5'') Label roll diameter

    75mm (2.95'') Roll core diameter

    160mm (6'') label height (standard)
