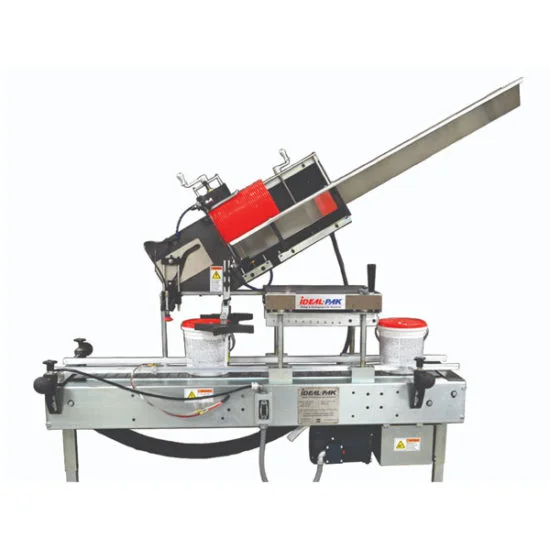

Automatic Lid Placer & Closer

Ideal Pak ALP-1

Precise and fast, this Automatic Lid Placer & Closer works efficiently on metal and plastic lids from 1/2 pint to one gallon. Individual lids are discharged from an in-feed and transferred to the top of the filled container via suction cup, the lid is conveyed through a set of star wheels before passing under the closer, ensuring the lid is seated properly prior to entering the closer.



This Automatic lid placer and closer works perfectly on cups, deli-tubs, or buckets with metal or thin plastic lids missing the rigidity needed to be handled by a vertical stacking unit. Changeovers are quickly accomplished.



Fully automating your in-line filling operation with an automated lid placing and closing system engineered to dispense and position lids (before closing) on filled containers increases productivity and reduces labor costs.

Category:

Accessories / Rigid Containers / Lid Placer & Closer




    Characteristics

    PLC controlled

    Reliable pick and place unit

    Starwheel for precise lid placement

    Range: 8 oz to 40 lbs

    Range: 8 oz to 40 lbs

    Specifications

    Range: 8 oz to 40 lbs

    Electricity: 208-240 VAC, 5 amps, 60 Hz

    Compressed air: up to 1 cfm @ 80 psi

    Applications

    Viscous & Semi-Viscous
    Viscous & Semi-Viscous

    Bakery
    Bakery

    Dairy Products
    Dairy

    Powders
    Powders

    Fresh Produce
    Fresh Produce

    Meats & Protein
    Meats & Proteins

    nuts and dried-fruit
    Nuts & Dried Fruits

    confection and sweets
    Confection & Sweets

    Liquids with Chunks
    Liquids with Chunks

    Pet Food
    Pet Food

    Solids in Brine
    Solids in Brine
