Pre-Made Pouch Bagger
6” to 12” Pouch Width

Leepack RP6- TZ (30)

NOTE: Model Leepack RP6-TZ (30) has been discontinued and has been replaced by Model Leepack RT 108

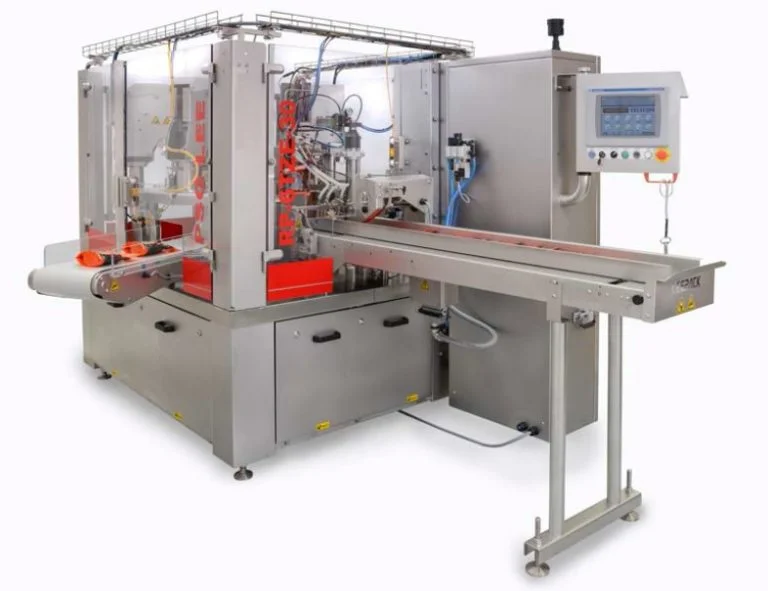

Leepack is a market leader for pre-formed pouch baggers with hundreds on machines running across North America.  Model RP6- TZ (30) is a 6 station rotary filling and sealing bagger system that can be used to fill various dry products, powders or solid products in stand-up pouches with various types of zippers, whether press-to-close  or slider.



This specific model of pouch bagger is a simplex model (which means one pouch is filled per cycle) which can be synchronized/integrated with literally any brand or style of combination scales.  For powder products, such as spices, flour, sugar, whey proteins or even chemical, an auger filler can be integrated to the premade pouch bagger instead of a scale.  Many other systems can be integrated to the bagger, like cup filler, linear scales or customized robotic inserting device.



This is the ideal premade pouch fill/seal bagger for co-packers.  PSG LEE/Leepack Baggers features Quick Size Changeovers in 15 minutes, which makes it the best-in-class for companies running various size of pouches.  Other features of the bagger include motorized zipper width adjustment from the HMI and positive zipper  opening device (patented).

Category:

Fill-Seal Bagger for pre-made pouches




    Pre-Made Pouch Bagger Simplex 6 Stations

    Features

    High quality construction and long-lasting machine components

    Allen Bradley PLC

    Proface HMI (Allen Bradley optional)

    Central operation and visualization via touch screen

    Compliant to safety regulations e.g. CE, UL, CSA, OSHA

    Pouch control (no pouch - no filling)

    Pouch gripper adjustment from HMI

    Patented zipper opening device

    Traveling fingers to funnel

    Remote machine access

    Ready to integrate combination scale, auger filler, piston filler or customized feed system

    Ready to integrate Ink jet or TTO coder

    Recipe management from HMI

    Options

    Washdown construction and easy cleaning

    Duplex configuration

    Date Code Systems

    Vibratory plate for product settling

    Ultrasonic sealing

    Corner spout magazine

    Gas flush or dust collection

    Opposite side construction

    Specifications

    Pre-made Sealable laminated film

    Pouch width: 6'' to 12''

    220V, 3ph, 60Hz / 24VDC

    Pneumatic: 80 to 90 PSI / 35 scfm / 600NL/min. clean dry air

    SIMPLEX

    Pouch size: Width 150-300 mm , Length 150 - 450 mm

    Speed: 40-50 pouches per minute

    Applications

    powders

    Chemicals

    Pharma & Nutra

    nuts & dried fruits

    confection & sweets

    pet food
