Continua Form-Fill-Seal
from PE Tubular Reels

Continua FFS

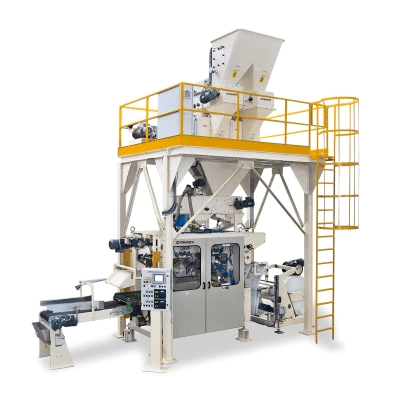

The Continua FFS or Form-Fill-Seal Bagger has three operating stations: one to form the bottom of the bag and cut the film to the desired length, the second for filling, and the third for sealing the upper edge of the bag.


This Continua FFS bagger possesses specialized mechanical and technical solutions that allow the machine to achieve high speeds. With its machine-mounted actuators, the Continua completes changeovers and shifts operating phases quickly, through the PLC and without additional operator intervention. The monobloc structure, equipped with inspection doors, makes the system perfectly safe for the operator.


Along with the usual vibration devices and options for corner sealing, this machine is equipped with the Concetti Group patented handle-maker device, treating 10 to 40 kg bags. This feature shapes one or two handles on the bag’s short sides, which improves transportation and manipulation.


Links to other Continua FFS Baggers:

Continua FFS for fine premix and pure cement


Continua FFS and palletizers for sandbags


Other machines from Concetti Group


Bagger / FFS / Large Bags

    Continua FFS Feed Bagger


    For powders and granular products

    Bags made from tubular reel (1500 mm diameter)

    Suitable for PP, PE, PET, ALU/PE film

    High quality construction and long-lasting machine components

    Allen Bradley PLC

    Proface HMI (Allen Bradley optional)

    Central operation and visualization via touch screen

    Compliant to safety regulations e.g. CE, UL, CSA, OSHA

    Bag control (no bag - no filling)

    Bag gripper adjustment from HMI

    Remote machine access

    Recipe management from HMI


    Servo-assisted system for the tubular reel change

    Date Code Systems

    Micro-perforation of the reel to evacuate the air inside the bag

    Probe to evacuate the air from the filled bag

    45°-sealing for the bottom and top corners of the gusseted bags

    IP 65 rated protection (washdown)

    Punch device to create handles during the bag-formation stage

    Device to create gussets from a flat tubular reel

    Product deareation system by means of probes

    Stainless steel execution


    Sealable film from tubular reel / Thickness 80-250 µm

    Maximum speed of 1800 bags per hour

    Bag weight: 10kg to 50 kg

    Bag lenght: min 320 max 420 mm

    Bag width: min 320 max 420 mm

    Gusset depth: min 40 max 90 mm

    380V, 60Hz / 24VDC

    Air consumption: 110 Nl/cycle
