I-Flex

Weighing and Filling Machine with Automatic Format Change

Concetti IGF Series I-Flex

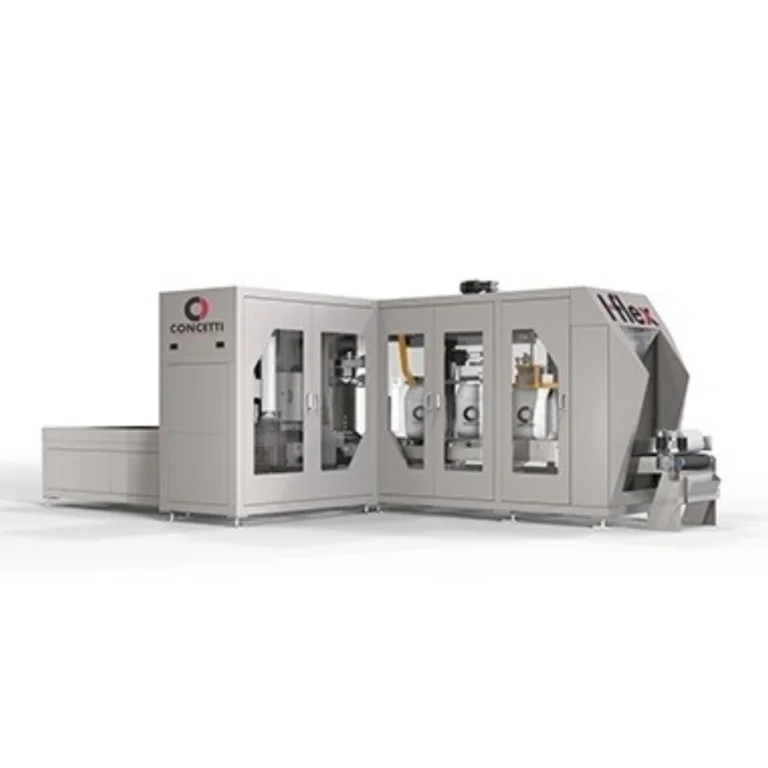

The Concetti I-Flex weighing and filling machine with automatic format change delivers unmatched versatility, simplicity, and compactness for open-mouth filling and sealing, setting a new benchmark for production line flexibility. As part of the renowned IGF series, the I-Flex seamlessly adapts to a range of bag types and closures, efficiently handling paper, raffia, and plastic, whether flat or gusseted, in open-mouth bags from 250 to 600 mm—all within a single system.

Its fully automated format changes make it easy to manage various packaging needs, while the compact and functional design meets global production challenges such as handling loose, free-flowing materials, frequent packaging changes, and limited space. Accessibility and ease of use are central to this weighing and filling machine, providing an ideal solution for producers seeking versatile, reliable, and efficient bagging.

  • Read More

    Airtight Bag Closure

    The I-Flex weighing and filling machine offers the possibility of using sewn or “pinch-top” airtight bag closures, eliminating contamination risks. Bags are beautifully compact and perfect for stabilized palletizing. The Concetti Group offers many bagging solutions for semi-free flowing materials and animal feed. With close attention to bag stability and airtight closures to avoid any leakage which could cause contamination.



    Other Open-Mouth Automatic Weighing and Filling Machine Machines

    IGF 600 Open-mouth baggers (a speed of up to 600 bags per hour)

    IGF 900 Open-mouth baggers (a speed of up to 900 bags per hour)

    IGF 1000 Open-mouth baggers (a speed of up to 1000 bags per hour)

Category:

Bagging / Weighing & Bagging Machine




    Features

    High quality construction and long-lasting machine components

    Stainless steel contact parts

    Allen Bradley or Siemens PLC

    Central operation and visualization via touch screen

    Recipe management from HMI

    Bag type: Pre-made open-mouth bags

    Automatic bag holder with selectable opening

    Compliant to safety regulations e.g. CE, UL, CSA, OSHA

    Bag control (no bag - no filling)

    Electrical: 380V, 50Hz

    Air consumption: 140 Nl/cycle

    Options

    Advanced diagnostic

    Bag Coding

    Bag Specifications

    Bag weight: 5 - 50 kg

    Production up to 600b/h

    Shape of bags: Flat or gusseted pre-made open-mouth bags

    Flat and gusseted bag dimensions: Width: from 250 to 600 m, depending on type of bag-holder user Length: from 480 to 1050 mm (gussets from 35 to 80 mm)

    Bag materials: Paper, Coated Paper, Woven PP, Coated Woven PP, Plastic

    Applications

    Pet Food
    Pet Food

    Animal Feed
    Animal Feed

    Seed

    Wood Pellets

    Chemicals
    Chemicals
