FS Pouch Bagger
Washdown Construction

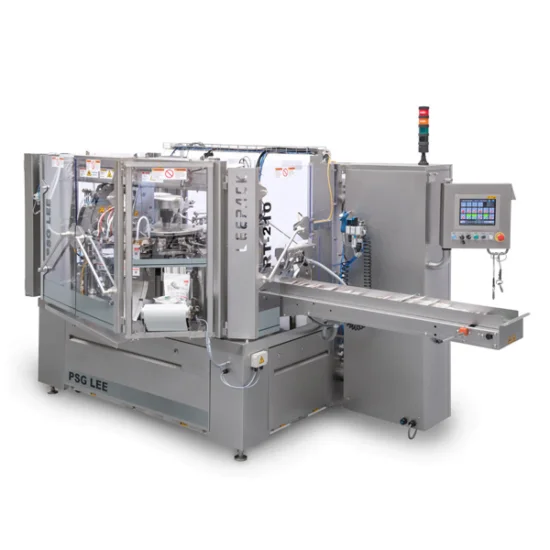

Leepack RT 210 (replacement for RP-8-24 T/Z)

Leepack is a market leader for pre-formed pouch baggers with hundreds of machines running across North America. Model RT 210 is an eight-station rotary filling and sealing bagger system engineered to fill various liquid, dry or frozen products in stand-up pouches with zippers or corner spouts depending on the configuration.

This specific pouch bagging model is constructed to withstand harsh work environments. It is entirely washdown and features a remote electrical cabinet and remote HMI (touch screen) to make cleaning and maintenance easier than competitive models. Quick Size Changeovers in 15 minutes make it the best-in-class for companies running variously sized pouches.

Category:

Bagger / FS / Premade Pouches

Get a Quote




    Simplex Washdown Pouch Bagger

    Features

    High quality construction and long-lasting machine components

    Allen Bradley PLC

    Proface HMI (Allen Bradley optional)

    Central operation and visualization via touch screen

    Compliant to safety regulations e.g. CE, UL, CSA, OSHA

    Pouch control (no pouch - no filling)

    Pouch gripper adjustment from HMI

    Patented zipper opening device

    Traveling fingers to funnel

    Remote machine access

    Ready to integrate combination scale, auger filler, piston filler or customized feed system

    Washdown construction and easy cleaning

    Ready to integrate Ink jet or TTO coder

    Recipe management from HMI

    Options

    Duplex configuration

    Date Code Systems

    Vibratory plate for product settling

    Ultrasonic sealing

    Corner spout magazine

    Gas flush or dust collection

    Opposite side construction

    Specifications

    Pre-made Sealable laminated film

    Pouch width: 3.9'' to 9.4''

    220V, 3ph, 60Hz / 24VDC

    Pneumatic: 80 to 90 PSI / 35 scfm / 600NL/min. clean dry air

    Pouch size: Width 100-240 mm , Length 140 - 350 mm

    Speed: Up to 50 pouches per minute

    Applications

    Viscous & Semi-Viscous
    Viscous & Semi-Viscous

    Dairy Products
    Dairy

    Powders
    Powders

    Frozen IQF
    Frozen / IQF

    Chemicals
    Chemicals

    Pharmaceutical & Nutraceutical
    Pharma & Nutra

    nuts and dried-fruit
    Nuts & Dried Fruits

    confection and sweets
    Confection & Sweets

    Liquids with Chunks
    Liquids with Chunks

    Pet Food
    Pet Food

    Solids in Brine
    Solids in Brine
