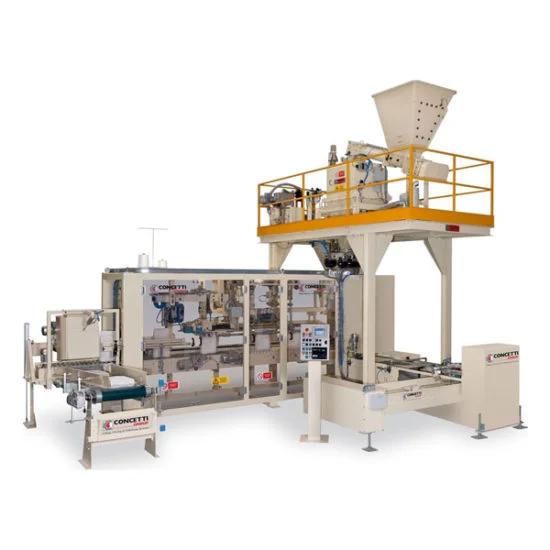

IGF 600 Open-Mouth Bagger
for 10-50 kg of dry product

Concetti IGF Series

The IGF Series are fully automated bagging systems designed specifically for filling and closing pre-made open-mouth bags. The Concetti Group offers several solutions for bagging semi-free flowing mixtures of coarse and fine powders with a clumping tendency as well as animal feed, with a special focus on bag stability and airtight closures to avoid any leakage which could cause contamination.



The compact dimensions of the IGF 600 are entirely suited to crowded production environments.



Combine the IGF 600 with the proven belt-fed NET/N weighing scale and an intermediate discharge belt for rapid bag filling and accurate regulation of product flow to the bag holder. In addition, the reduction of trapped air ensures long-lasting attractive packaging and great pallet stacking qualities. It is also possible to couple the IGF with either a net or gross weigher using gravity, belt, or screw-feed systems depending on the product to be bagged.



THE IGF SERIES’ VERSATILITY

Self-adjusting features on various system components allow the same machine to fill and perfectly close flat or gusseted bags in a range of 10/25/50 kg, made of Paper, PE, or WPP.



AIRTIGHT BAG CLOSURE

The IGF series offers traditional sewing or “pinch top” closures. Airtight closures eliminate contamination risks during the bagging and storage processes, which typical valve bag installations do not. The result is nicely squared, geometric-shaped bags ready for palletizing.



FORMAT CHANGE

The PLC-assisted format change is fully automatic to minimize setup times – in just 90 seconds – without any operator intervention whatsoever. The IGF comes complete with inspection doors and safety devices compliant with the current EC regulations.



DUST-FREE PRODUCT FEEDING AND FILLING

Concetti augers (single or double) are perfect for reducing the quantity of air trapped in the bagging process and are easily disassembled for easier cleaning. The product moves to our IGF automatic bagger class, specially fitted to work flat and gusseted pre-made bags made of paper or cloth. De-aeration probes are then inserted inside the bag to eliminate the air during the filling process, making the bag more stable, compact, and drastically reducing powder in the bagging zone.

The Concetti Group equipment for flours is subject to a particular “food finishing” painting cycle.



EQUIP THE IGF WITH OTHER BAG-CLOSING DEVICES

SIMPLE SEWN CLOSING

STITCHING AND APPLICATION OF STRING

STITCHING AND APPLICATION OF CREPE TAPE

STITCHING AND APPLICATION OF ADHESIVE TAPE

HOT-MELT CLOSING

HEAT-SEALING

PINCH-TOP CLOSING



OPTIONAL PALLETIZING FEATURES

Vibration and air-evacuation devices on the IGF series machinery favor an excellent distribution of semi-free-flowing mixtures within the bags. This feature enables automated palletization with PS/AA high-push-type level palletizers or the class PS-3A robot palletizer class.



OTHER OPEN-MOUTH BAGGING MACHINERY

IGF 900 Open-mouth baggers (a speed of up to 900 bags per hour)

IGF 1000 Open-mouth baggers (a speed of up to 1000 bags per hour)

IGF 1200 Open-mouth baggers (a speed of up to 1200 bags per hour)

Category:

Bagger / Open-Mouth Bags




    IGF 1000 Open-Mouth Bagger

    Features

    For powders and granular products

    Max speed: 600 b/h, depending on the characteristics of the product to be bagged.

    Weighing range: 5-50 kg

    Bag magazine capacity: 50/600

    Allen Bradley or Siemens PLC

    Proface HMI (Allen Bradley optional)

    Central operation and visualization via touch screen

    Compliant to safety regulations e.g. CE, UL, CSA, OSHA

    Bag control (no bag - no filling)

    Bag gripper adjustment from HMI

    Remote machine access

    Recipe management from HMI

    Electrical: 380V, 60Hz / 24VDC

    Air consumption: 110 Nl/cycle

    Options

    Comb system to vibrate the bag bottom during filling

    Upper-level bag-vibrating system using the bag-holder

    Print-and-apply or label applicator for pre-printed labels

    Date Code Systems

    Ticket machine for labels to be sewn on the upper bag edge

    Stainless steel for parts in contact with aggressive products

    Dust hoods

    Deaeration probes for aerated products.

    Bag Specifications

    Bag type: Pre-made open-mouth bags

    Shape: Flat bags, with or without handle, cushion, with sewn bottom, sealed or glued (pinch bottom). Flat bags, with or without handle, cross bottom. Gusseted bags, with or without handle, sewn bottom, square, sealed or glued (pinch bottom)

    Flat bag dimensions: Width: from 350 to 600 mm or from 300 to 500 mm , depending on type of bag-holder user Length: from 550 to 1100 mm

    Gusseted bag dimensions: Width: from 250 to 450 mm Length: from 550 to 1100 mm Gusset from 50 to 70 mm or from 50 to 100 mm with individual bag infeeder

    Bag materials: Paper Coated paper Paper with PE liner Paper with aluminum liner PE PP raffia Coated raffia Raffia with PE liner
