Twin-Spout Bagger for
2-20 kg Open-Mouth Bags

Concetti IMF

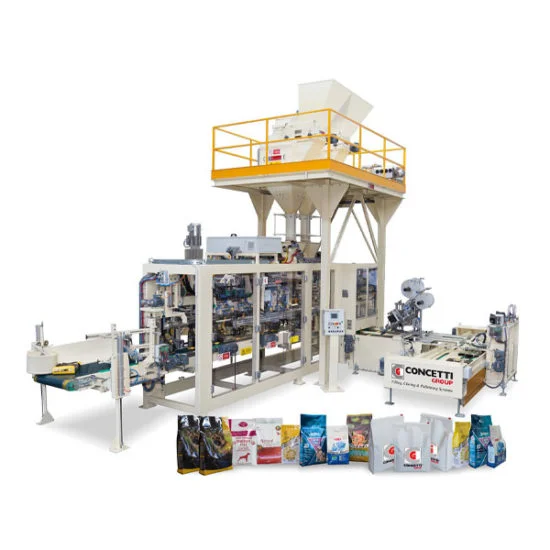

The IMF Twin Spout Open-Mouth Bagger is a fully automatic bagging system that features two bagging mouths for the filling and sealing of medium-sized open-mouth and gusseted bags, weighing from 2-20 kg, at speeds reaching up to 1800 bags/hour. With its particularly compact size, the IMF Twin Spout Open-Mouth Bagger fits into any existing production area.



Demonstrating its extreme versatility, the IMF fills and seals gusseted, paper, coated paper, and aluminum bags in a wide range of widths and lengths. The system’s self-adjusted mechanisms ensure optimum filling and perfect sealing every time.



All bag formatting parameters stored in the PLC require 90 seconds to adjust the empty-bag storage trolley and belt conveyor height automatically. It transmits the operating parameters to the scale, any closing/sealing devices, palletizing and wrapping systems.



The IMF Twin Mouth bagger comes complete with inspection doors and safety devices that comply with the current EC regulations.

Integration with a net or gross weigher using gravity, belt, or screw-feed systems is possible depending on the product type.



IMF BAG-CLOSING OPTIONS:

SIMPLE SEWN CLOSING

STITCHING AND APPLICATION OF STRING

STITCHING AND APPLICATION OF CREPE TAPE

STITCHING AND APPLICATION OF ADHESIVE TAPE

HOT-MELT CLOSING

HEAT-SEALING

PINCH TOP



Other Bagging Machines for open-mouth bags:

IGF 900 Open-mouth baggers (speed up to 900 bags per hour)

IGF 1000 Open-mouth baggers (speed up to 1000 bags per hour)

IGF 1200 Open-mouth baggers (speed up to 1200 bags per hour)



Optional Palletizing
The ingenuity of the IMF’s product distribution is achieved using vibration and air-evacuation devices. Loose powder is compactly packaged and palletized with our PS/AA high-push-type level palletizers or the robot palletizer class PS-3A.

Category:

Bagger / Twin-Spout / Open-Mouth Bags




    IMF Twin-Spout Bagger

    Features

    For powders and granular products

    Max speed: 1800 b/h, depending on the characteristics of the product to be bagged.

    Weighing range: 2-20 kg

    Bag magazine capacity: Up to 500 bags

    Allen Bradley or Siemens PLC

    Proface HMI (Allen Bradley optional)

    Central operation and visualization via touch screen

    Compliant to safety regulations e.g. CE, UL, CSA, OSHA

    Bag control (no bag - no filling)

    Bag gripper adjustment from HMI

    Remote machine access

    Recipe management from HMI

    Electrical: 380V, 60Hz / 24VDC

    Air consumption: 110 Nl/cycle

    Options

    Execution in stainless steel of the parts in contact with the product.

    Dust elimination systems.

    Self-adjustable bag magazine.

    Date Code Systems

    Labelling device for pre-printed labels and printed in real time on empty bag

    Ticket machine for labels to be sewn on the upper bag edge

    Device for deaeration of the product in the full bag.

    Partial evacuation of air from the bag (with mechanical system or vacuum).

    Designed to work in Atex-classified areas.

    Bag Specifications

    Bag type: Pre-made open-mouth bags

    Bag Shape: Gusseted, block bottom with or without handles

    Flat bag dimensions: width: from 150 to 320 mm length: from 300 to 600 mm gusset from 30 to 70 mm

    Bag materials: Paper Coated paper Paper with PE liner Paper with aluminum liner PE PP raffia Coated raffia Raffia with PE liner

    Applications

    Powders
    Powders

    Chemicals
    Chemicals

    Pet Food
    Pet Food
