Cobot Tray Packer

Link-Pack

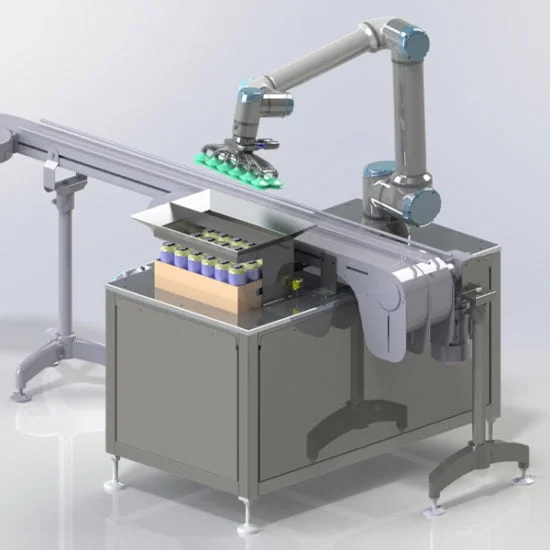

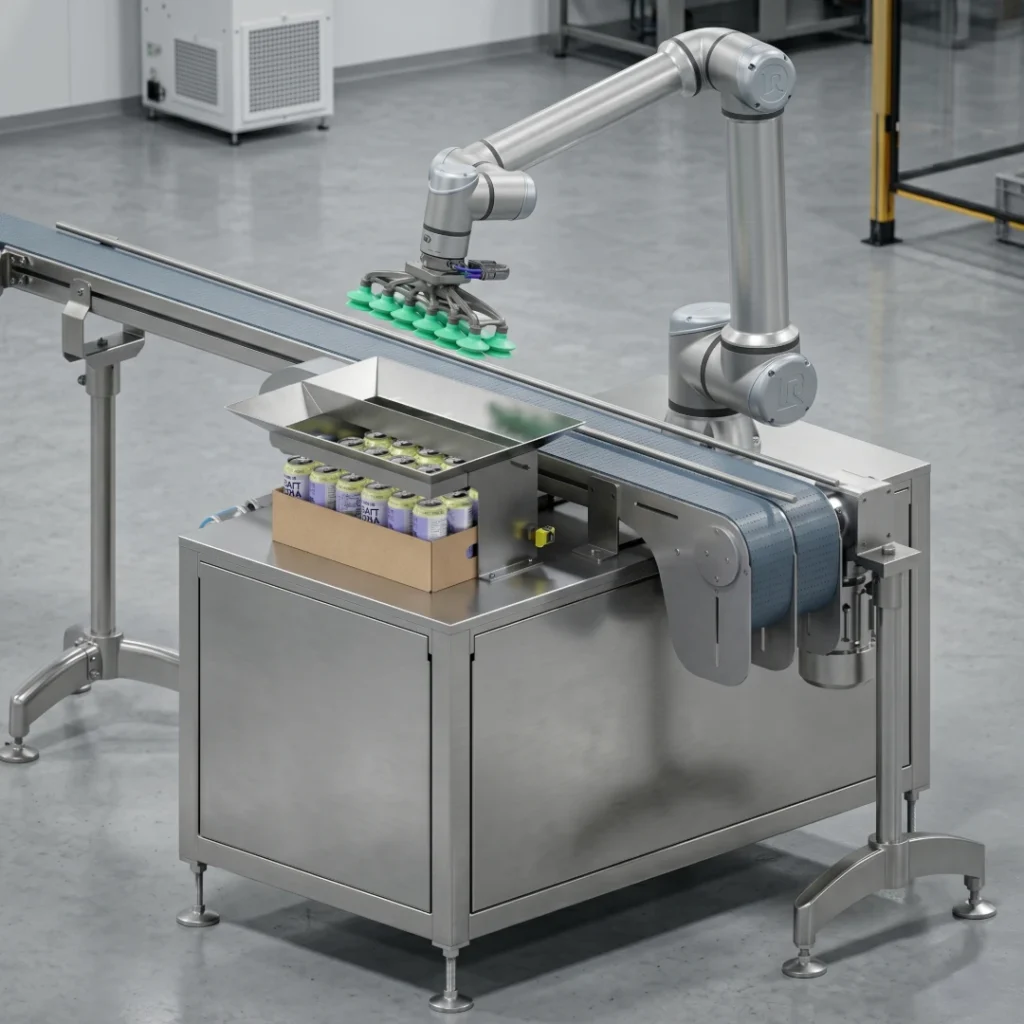

Link-Pack’s Cobot Tray Packer has a compact footprint ideal for automated, integrated production lines, picking, packing, and other applications. Options for this cobot include automatic tray erecting and handling. Tooling or end effectors can be substituted to be better adapted to jobs in multiple industries, including food & beverage or medical & cosmetics.



This lightweight cobot is mounted to our rugged stainless steel frame and offers a wide reach of up to 1300mm and a payload of 12,6kg. This model’s tooling includes ultra-light yet sturdy 3d carbon-printed suction cups, which do not penalize the cobot’s total payload capacity. It handles 12 cans per cycle for trays with a 24-can capacity or approximately four trays per minute. The current application is adapted to tray packing but is also suitable for RSC cases.



It can accomplish complex movements with six operating axes, moving in x, y, and z planes using roll, pitch, and yaw. This collaborative robot automates strenuous work and simplifies processes. Easy to program, it is capable of collaborative work and is backed by a solid team to train the workforce and ensure technical support throughout its lifetime.



Supported by our small but sturdy open frame, the collaborative robot fills production orders faster and safely and upskills workers. With collaborative robots, automation is fast, flexible, and affordable.



This tray packer can be combined to our wrap labeler for a full product labeling & packing line.

Category:

Cobot / Tray Packer / Microbrewery




    Encaisseuse Robotisée

    Features

    Payload: 12.5kg

    Reach: 51.2 in

    304 Stainless steel welded frame

    Cobot composed of aluminum, plastic and steel parts

    Compliant to EN ISO 13849-1, PLd Category 3, and EN ISO 10218-1

    e-Series Teach Pendant intuitive user interface

    12 inch touchscreen with polyscope graphical user interface

    Pose Repeatability per ISO 9283: ± 0.03 mm

    Noise Less than 65 dB(A)

    Robot mounting: Any orientation

    Options

    Tooling or end effectors

    Frame and conveyor height

    Tray erector

    RSC Case erector

    Tray/Case conveyor

    Specifications

    Electrical: 100-240VAC, 47-440Hz

    I/O Power supply: 24V 2A

    Operating temperature range: 0-50 °C

    Air Supply: 5.5 Bar/23 SCFM/90PSI
