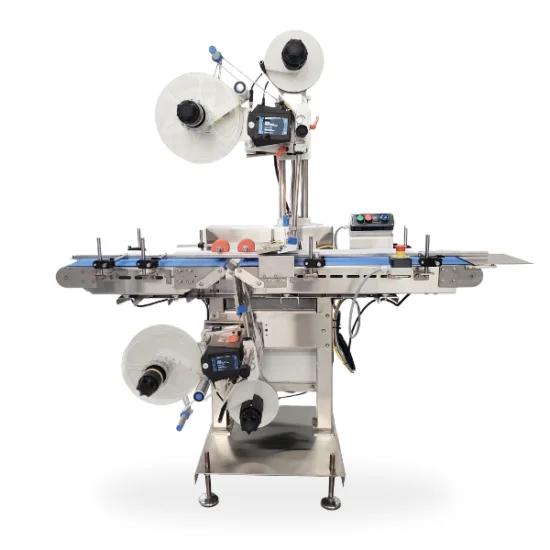

Top and Bottom Labeler

Link Pack

This Top and Bottom Labeler has a is a foolproof system, ideal for simultaneous application of labels to both sides of product packaging. Changing the roll of labels, adjusting for different package sizes, and regulating speed should all be intuitive tasks.



Primarily used in industries where trays, tubs, cartons, and pouches are used for packing products, our top and bottom labeler design will allow you to apply labels on both sides of almost any product with high accuracy and repeatability.



Already one of the most compact labelers in the market for top and bottom applications, this model can be custom-designed to fit your existing production line. Optional locking wheels (casters) are available to let you move the machine away from your production area when you don’t need it.



Our top and bottom labelers feature a full washdown conveyor, frame and electrical box, and IP65 label applicators for wet and harsh environments.

Category:

Labelers / Top & Bottom




    Automatic Top & Bottom Labeling Machine

    Features

    High quality construction and long-lasting machine components

    Herma servo label applicators

    Compliant to safety regulations e.g. UL, CSA, OSHA

    Split conveyor with nylon belts

    Open-frame design

    Quick Changeovers

    Ready to integrate TTO or Laser coder

    Options

    Coder (thermal transfer or laser)

    Allen Bradley PLC & HMI

    Vision inspection (OCR/OCV)

    Tall labels (240mm or 300mm instead of 160mm)

    Extended length conveyor

    Redundant system (by adding a second label head)

    Reject system for faulty products

    Specifications

    For any flat products

    Speed up to 90 per minute

    208V, 1ph, 60Hz / 24VDC

    Pneumatic: 80 PSI / 6 scfm clean dry air (some applications)

    300mm (11.5'') diameter label rolls

    160mm (6'') label height (standard)

    Applications

    Dairy Products
    Dairy

    Powders
    Powders

    Chemicals
    Chemicals

    confection and sweets
    Confection & Sweets

    Pet Food
    Pet Food
