Hygienic Horizontal Bagger FMH 80 | Link Pack

SN Pouch-Pack FMH 80
USDA/3A Hygienic Design
Horizontal Form-Fill-Seal

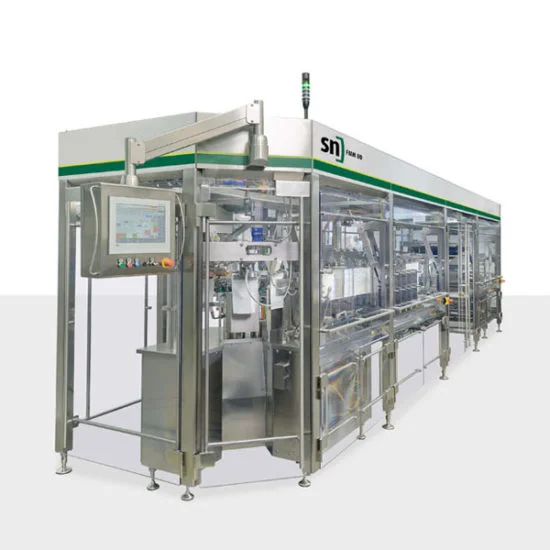

The FMH 80 is a Simplex Horizontal Form- Fill – Seal machine in Washdown – USDA 3A Specification, suitable for cheese, meat or any other food processing environment.



Without compromising the performance or robustness of of the machine, the engineers at SN Pouch Pack Technology designed this Hygienic Bagger with an open-frame to let the cleaning, maintenance crews as well as operators easily access all sections of the machine.  Other features such as “single clamp” cassette for quick gripper changeovers, sealing jaws on pivoting turret and servo-driven seal bars are only a few of the added benefits of this Hygienic HFFS Bagger.



The FMH 80 is an intermittent packaging machine. For the production, filling and sealing of flat or stand-up pouches from the roll stock (also with reclosure systems), the rotary machine has eight stations in Hygienic design.



Typical applications are shredded cheese, meat products, frozen fruits, frozen vegetables or any dry or liquid products.



Benefits at a glance:

  • Complies with the highest hygiene requirements of the food industry
  • Very easy to clean thanks to the open machine construction
  • Consequent reduction of corners, edges and plain surfaces to prevent dirt deposits
  • Ideal for liquids and powder products
  • Central operation and visualization via touch control panel
  • Direct driven unwinding and brake function
  • Dosing equipment: Auger filler, volumetric cup filler, piston fillers, flow-meter or linear and multi- head scales



Also featuring:

UltraClean™ USDA/3A standards for wash-down models

DuoSmart™ servo driven system for accurate registration and lowest waste possible

LamiPurge™ Gas flush system for results below 2% residual oxygen

EZ Change™ cassettes for fast size changeovers

WeighSmart™ scale interface with pouch maker For highest efficiency

Category:

Horizontal Form-Fill-Seal Bagger




Features

USDA 3A Dairy Wash down construction

High quality construction and long-lasting machine components

Direct driven unwinding and brake function

Servo driven sealing device

PLC Siemens or Allen Bradley

Central operation and visualization via touch screen

Compliant to safety regulations e.g. CE, UL, CSA, OSHA

Pouch control (no pouch - no filling)

Cutting and gluing table

Film edge control

Motor driven roll lifting unit

Teleservice

Dosing equipment: cup filler, auger filler, scales, micro pump for smallest volumes, piston filler

Hygienic construction and easy cleaning

Peripheral units can be easily integrated

Synchronization with linear and multi-head weighers

Options

Stand-up pouch device

Date Code Systems

Ultrasonic sealing

Reclosure systems

Recipe management

Servo driven block-adjustment of sealing frames, camera controlled

Opposite side construction

Specifications

Sealable laminated film

400V or 230V / 24VDC

Pneumatic: ca. 600. Nl/min, 6 bar

FMH 80 135 –  SIMPLEX

Pouch size: Width 50mm to 280mm , Length 80mm to 350mm

Speed: Up to 100 pouches per minute

Applications

viscous & semi-viscous

dairy

powders

Frozen / IQF

nuts & dried fruits

confection & sweets

with chuncks

solids in brine
