FFS Bagger & Palletizer

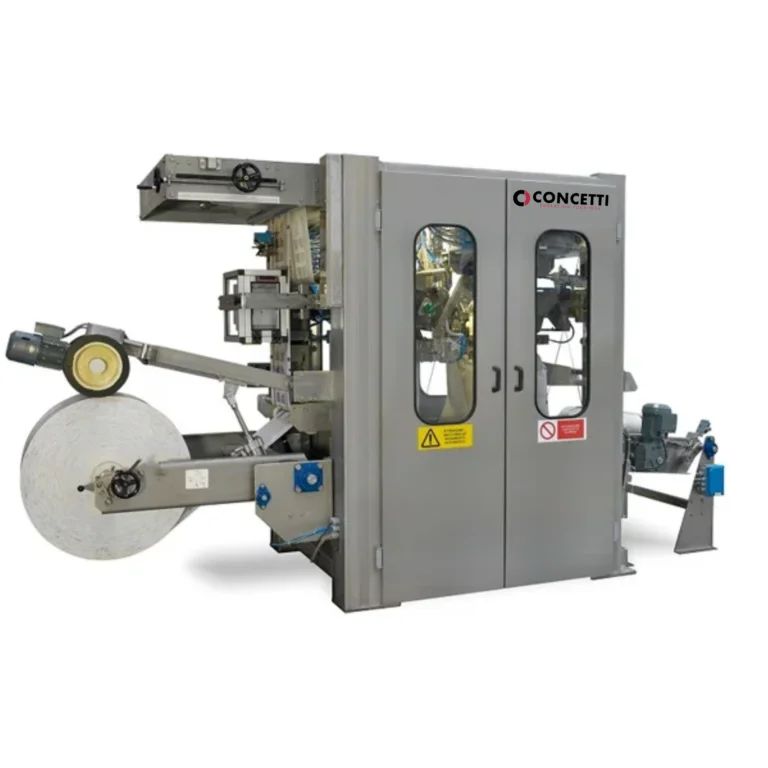

Concetti Continua FFS-E

This FFS Bagger & Palletizer by the Concetti group are ideal for many applications including wood pellet bagging, pet foods and many other granular products. This Form-Fill-Seal Machine produces bags from roll stock (tubular PE reels), which are cost-effective as they provide savings in storage space and money compared to their pre-made counterparts. The Continua FFS-E model offers technologically advanced bagging solutions, and paired with bag inspection units and robotic palletizing it delivers results tailored to customer needs.



The Continua FFS-E comes with three operating stations: the first handles the forming of bag bottoms – based on the desired bag length, the second manages the filling cycle, and the third conducts top sealing. The corner-welding feature on this bagger produces a squarer, more compact, sturdy, and spacious bag.



The operating parameters for phases and changeovers are PLC-assisted and completed quickly, resulting in time efficiency. The Continua FFS-E operates with minimal operator intervention, thanks to the actuators mounted on the machine, and the monobloc structure is equipped with inspection doors making it for the operator.

  • Read More

    FFS BAGGER ADVANTAGES:

    • Very high capacity outputs, over 1800 bags/hour
    • Safe, stable, reliable, and above all, fast
    • Monobloc with easy access for cleaning & inspection
    • Clean workplace free of spillage



    Links to other Concetti FFS Baggers:



    Continua FFS for fine premix and pure cement

    Continua FFS and palletizer for sandbags



    Other machines from Concetti Group

Category:

Bagger / FFS / Large Bags




    Meet the Continua FFS Bagging Machine
    Bag from tubular roll of plastic filled with wood pellets

    Features

    For powders and granular products

    Bags made from tubular reel (1500 mm diameter)

    Suitable for PP, PE, PET, ALU/PE film

    High quality construction and long-lasting machine components

    Allen Bradley PLC

    Proface HMI (Allen Bradley optional)

    Central operation and visualization via touch screen

    Compliant to safety regulations e.g. CE, UL, CSA, OSHA

    Bag control (no bag - no filling)

    Bag gripper adjustment from HMI

    Remote machine access

    Recipe management from HMI

    Options

    Servo-assisted system for the tubular reel change

    Date Code Systems

    Micro-perforation of the reel to evacuate the air inside the bag

    Probe to evacuate the air from the filled bag

    45°-sealing for the bottom and top corners of the gusseted bags

    IP 65 rated protection (washdown)

    Punch device to create handles during the bag-formation stage

    Device to create gussets from a flat tubular reel

    Product deareation system by means of probes

    Stainless steel execution

    Specifications

    Sealable film from tubular reel / Thickness 80-250 µm

    Maximum speed of 2000 bags per hour

    Bag weight: 4kg to 50 kg

    Bag lenght: min 550mm to 1000mm

    Bag width: min 320 max 420 mm (min 280mm with a special bag-holder)

    Gusset depth: min 40 max 90 mm

    380V, 60Hz / 24VDC

    Air consumption: 110 Nl/cycle

    Applications

    Powders
    Powders

    Chemicals
    Chemicals

    Pet Food
    Pet Food
