HFFS Bagger USDA 3A | Link Pack

SN Pouch-Pack FBM 300
Triplex Horizontal Form-Fill-Seal Bagger

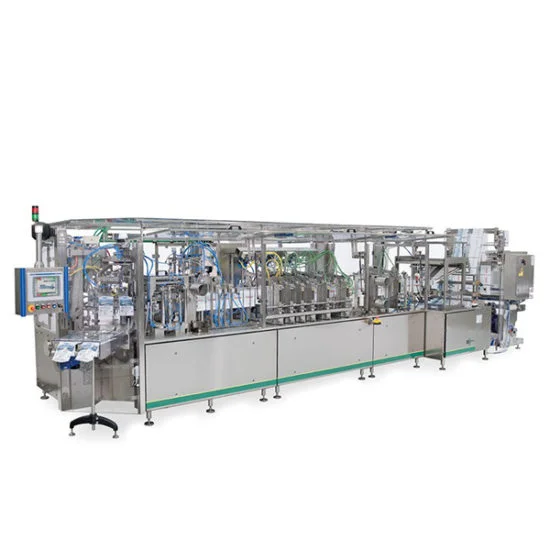

The FBM 300 is a high speed Triplex Form- Fill – Seal machine in Washdown – USDA 3A Specification.

Model FBM 300 is an intermittently operating rotary machine model with eight stations. It is suitable for the manufacturing and filling of flat-bottom or stand-up bags, including with resealing systems, starting from the role. It is therefore suitable for a wide range of applications, are of top quality and are extremely flexible.



Typical applications are shredded cheese, meat products, frozen fruits, frozen vegetables or any dry or liquid products.



Options include:

UltraClean™ USDA/3A standards for wash-down models

DuoSmart™ servo driven system for accurate registration and lowest waste possible

LamiPurge™ Gas flush system for results below 2% residual oxygen

EZ Change™ cassettes for fast size changeovers

WeighSmart™ scale interface with pouch maker For highest efficiency

Category:

Horizontal Form-Fill-Seal Bagger




SN pouch bagger - HFFS Bagger for liquids

Features

USDA 3A Dairy Wash down construction

High quality construction and long-lasting machine components

PLC Siemens or Allen Bradley

Central operation and visualization via touch screen

Compliant to safety regulations e.g. CE, UL, CSA, OSHA

Pouch control (no pouch - no filling)

Cutting and gluing table

Film edge control

Motor driven roll lifting unit

Teleservice

Dosing equipment: cup filler, auger filler, scales, micro pump for smallest volumes, piston filler

Hygienic construction and easy cleaning

Peripheral units can be easily integrated

Synchronization with linear and multi-head weighers

Options

Date Code Systems

Ultrasonic sealing

Reclosure systems

Recipe management

Opposite side construction

Specifications

Sealable laminated film

400V or 230V / 24VDC

Pneumatic: ca. 600. Nl/min, 6 bar

FBM 300 TRIPLEX

Pouch size: Width up to 196 mm , Length 120 - 350 mm

Speed: Up to 180 pouches per minute

Applications

viscous & semi-viscous

dairy

powders

Frozen / IQF

nuts & dried fruits

confection & sweets

with chuncks

solids in brine
