Pouch Bagger Duplex | Link Pack

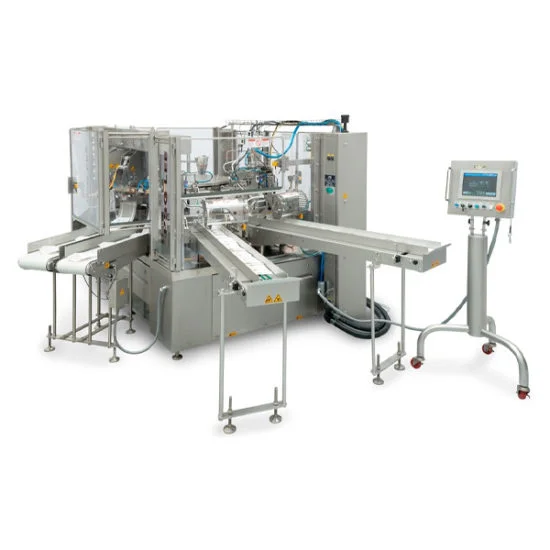

Leepack RD-314-WD
Duplex Pre-made Pouch Bagger
Washdown Construction

Leepack is a market leader for pre-formed pouch baggers with hundreds on machines running across North America.  Model RD-314 is a Duplex, eight station rotary filling and sealing bagger system that can be used to fill various dry products, powders or solid products in stand-up pouches with various types of zippers, whether press-to-close  or sliders.



This specific model of pouch bagger is a duplex model (which means two pouches are filled per cycle) which can be synchronized/integrated with literally any brand or style of combination scales.  For powder products, such as spices, flour, sugar, whey proteins or even chemical, auger fillers can be integrated to the premade pouch bagger instead of a scale.  Many other systems can be integrated to the bagger, like cup fillers, linear scales or customized robotic inserting device.



This is the ideal premade pouch fill/seal bagger for co-packers.  PSG LEE/Leepack Baggers features Quick Size Changeovers in 15 minutes, which makes it the best-in-class for companies running various size of pouches.  Other features of the bagger include motorized zipper width adjustment from the HMI and positive zipper  opening device (patented).

Category:

Fill-Seal Bagger for pre-made pouches




Features

High quality construction and long-lasting machine components

Allen Bradley PLC

Proface HMI (Allen Bradley optional)

Central operation and visualization via touch screen

Compliant to safety regulations e.g. CE, UL, CSA, OSHA

Pouch control (no pouch - no filling)

Pouch gripper adjustment from HMI

Patented zipper opening device

Traveling fingers to funnel

Remote machine access

Ready to integrate combination scale, auger filler, piston filler or customized feed system

Ready to integrate Ink jet or TTO coder

Recipe management from HMI

Options

Washdown construction and easy cleaning

Simplex configuration

Date Code Systems

Vibratory plate for product settling

Ultrasonic sealing

Corner spout magazine

Gas flush or dust collection

Opposite side construction

Specifications

Pre-made Sealable laminated film

Pouch width: 3.9'' to 9.0''

220V, 3ph, 60Hz / 24VDC

Pneumatic: 80 to 90 PSI / 35 scfm / 600NL/min. clean dry air

SIMPLEX

Pouch size: Width 100-240 mm , Length 140 - 350 mm

Speed: Up to 50 pouches per minute

DUPLEX

Pouch size: Width 100 - 240 mm , Length 140 - 350 mm

Speed: Up to 100 pouches per minute

Applications

dairy

powders

Chemicals

Pharma & Nutra

nuts & dried fruits

confection & sweets

pet food
