Automatic Lidder

Link Pack

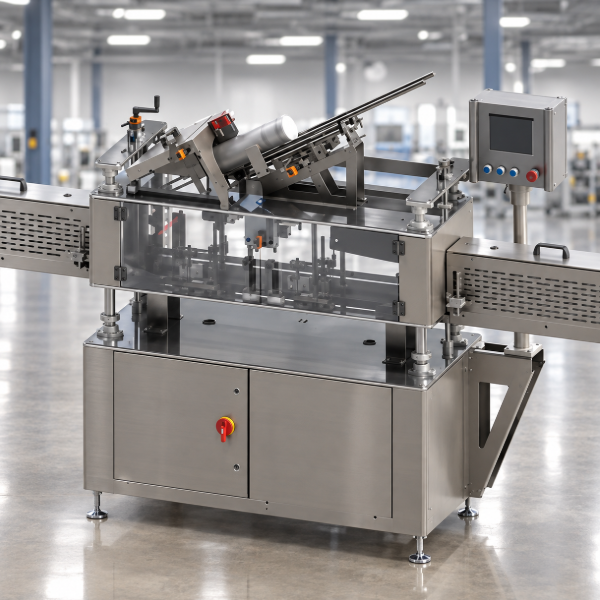

Our Automatic Lidder accelerates the placing & sealing of plastic and metal lids on containers ranging from 1/2 pint to one gallon. Filled containers are placed on a single-lane conveyor, heading to the automatic lid dispenser. Individual lids are discharged from a gravity infeed and loosely placed on the containers, then continue through a set of starwheels to align the lids correctly before passing under the closer.



Our automatic lidding machine is ideal for cups, deli-tubs, or buckets with metal or plastic lids, it increases productivity and reduces labor costs.

Category:

Accessories / Rigid Containers / Lid Placer & Closer




    Need an Induction Sealer?

    Induction seals are hermetic, prevent leaking and provide tamper evidence.

    Link Pack Automatic Lidder

    Characteristics

    NEMA 4X Stainless Steel Control Box (with lockable main power switch)

    Controled by Allen Bradley PLC and HMI

    Compliant to safety regulations e.g. UL, CSA, OSHA

    Starwheel for precise lid placement

    Compatible with lids: 1.75`` - 6.125`` diameter

    Compatible with containers: 2 5/8`` - 6.5`` diameter

    Up to 40 lids/min

    Options

    Format change parts (various lid diameters)

    Ink Jet Coder with mobile support

    Accumulation Table

    Specifications

    Range: 8 oz to 40 lbs

    Electricity: 208-240 VAC, 5 amps, 60 Hz

    Compressed air: up to 1 cfm @ 80 psi

    Applications

    Viscous & Semi-Viscous
    Viscous & Semi-Viscous

    Bakery
    Bakery

    Dairy Products
    Dairy

    Powders
    Powders

    Fresh Produce
    Fresh Produce

    Meats and protein
    Meats & Proteins

    nuts and dried-fruit
    Nuts & Dried Fruits

    confection and sweets
    Confection & Sweets

    Liquids with Chunks
    Liquids with Chunks

    Pet Food
    Pet Food

    Solids in Brine
    Solids in Brine
