Filling, Sealing & Lidding Line

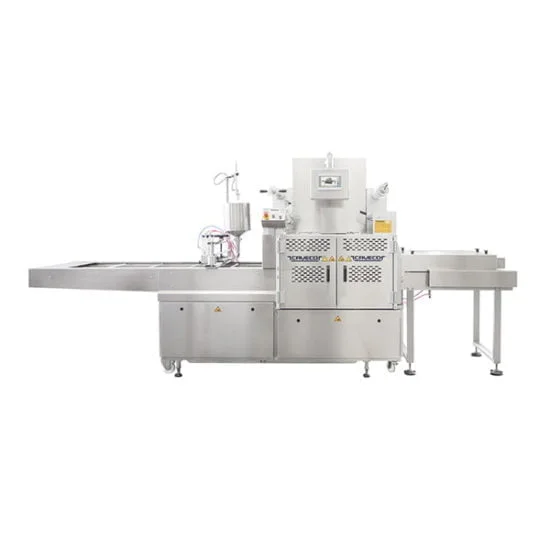

Caveco Tema 45

The Tema 45 is an automatic filling line certified for food contact. Available with piston fillers, it transfers tubs or trays to a  fill station, automatically dispensing product into empty tubstrays, or buckets. The containers then travel to the lid depositor unit and finally under the closing unit.



This filling line can manage various products ranging from liquidsemi-liquiddryviscous, or sticky. It handles round, square, or rectangular open mouth containers, with or without a tamper-evident button.

Category:

Filling, Sealing and Lidding Lines




    Filling & Sealing Line

    Features

    High speed

    User friendly HMI

    Electronic filling unit

    Thermosealing: up to 17 cycles per minute

    MAP (with protective atmosphere): from 5 - 12 cycles per minute

    SKIN: from 5 - 7 cycles per minute

    Sanitary Design - Fully Washdown Machine

    Electrical installations are protected against water and humidity according to IP65 regulations

    Flexibility: simple & quick container size changeover

    Tank with constant level

    All metal parts in stainless steel => long lasting, fully washable

    1 automatic plastic-film sealer up to 3 000 containers/hour

    Options

    1 or more denester head(s) for different lid formats

    1 or more denester(s) head(s) for different containers format

    180° tray rotation unit

    Multi charge denesting unit

    Discharge with multi-head weigher

    System for top lids

    Expiry date and register number printer

    Specifications

    Range: 3lbs g to 10lbs

    Electricity: 400 VAC, 60 Hz

    Compressed air: 7 Bar

    Gearmotor: AC motor with dedicated gearbox and inverter drive

    Footprint variable

    Applications

    Viscous & Semi-Viscous
    Viscous & Semi-Viscous

    Bakery
    Bakery

    Dairy Products
    Dairy

    Fresh Produce
    Fresh Produce

    Powders
    Powders

    Meats and protein
    Meats & Proteins

    confection and sweets
    Confection & Sweets

    Liquids with Chunks
    Liquids with chunks

    Pet Food
    Pet Food

    Solids in Brine
    Solids in Brine

    Soups and Sauces
    Sauces

    Pasta
