Dual-Side Pail Labeler

Link Pack Elita Series

Link-Pack’s Elita series dual-side pail labeling machine is a fully automated solution designed to apply front and back labels simultaneously onto straight walled empty plastic or metal pails. Built for precision, ease of use, and reliability, this system is ideal for manufacturers looking to automate bucket labeling in industries like paint and coatings, chemicals, cleaners and food processing.



The labeling process starts as pails are placed on the infeed conveyor. Guides at the entrace to the labeler automatically lift and hold pail handles upright to provide necessary clearance for precise and uninterrupted label application. Using two label applicators, one either side of the labeling machine’s chassis, the machine simultanoeusly applies front and back pre-printed pressure-sensitive labels onto either side of the pail. Labeling is triggered when sensors signal the Herma 500 label heads for application.



The labels are firmly pressed onto the container using brushes, ensuring full surface contact and a smooth, wrinkle-free finish. For longer labels, optional piston-activated foam rollers can be added to enhance pressure and guarantee consistent adhesion along the entire length.

  • Read More

    Changeovers between pail formats are made simple through a touchscreen interface that stores all electronic parameters as recipes. Operators can easily select the appropriate settings, while mechanical adjustments are clearly graduated for quick and repeatable setups.



    Engineered and built in Canada, the entire system sits on a sturdy 304 stainless steel frame with adjustable legs for added stability. The electrical cabinet is housed in a NEMA 4-rated enclosure, and the system is powered by a PLC and touchscreen interface from either Allen Bradley or Schneider, depending on client preference.



    For safety and compliance, the machine includes a full polycarbonate safety cage with interlocked access doors and meets CSA Z432 standards. All electrical components are inspected and certified by CSA prior to delivery.



    Whether you’re labeling industrial buckets for liquid products, granulated contents, or anything in between, Link-Pack’s automatic pail labeler offers the flexibility, reliability, and safety your operation demands.

Category:

Labelers / Pressure-Sensitive / Pails




    Elita dual-side pail labeler

    Features

    High quality construction and 304 stainless steel frame mounted on adjustable legs

    Optical sensor for positioning

    Handle Guide

    Allen Bradley PLC & HMI Controls

    Herma servo label head

    Compliant to safety CSA regulations

    FDA-approved seamless belt conveyor

    Options

    Extended gravity roller accumulation conveyor

    Specifications

    For any pail size

    Speed up to 40 ppm (depending on pail size)

    208V, 1ph, 4CFM

    Label roll diameter: 300mm (11.5'')

    Label height:160mm (6'') (standard)

    Compact footprint: 90`` L x 30`` W

    Applications

    Chemicals
    Chemicals

    Household Cleaners
    Cleaners

    Foods

    Solids in Brine
    Solids in Brine

    Pet Food
    Pet Food

    Related Products

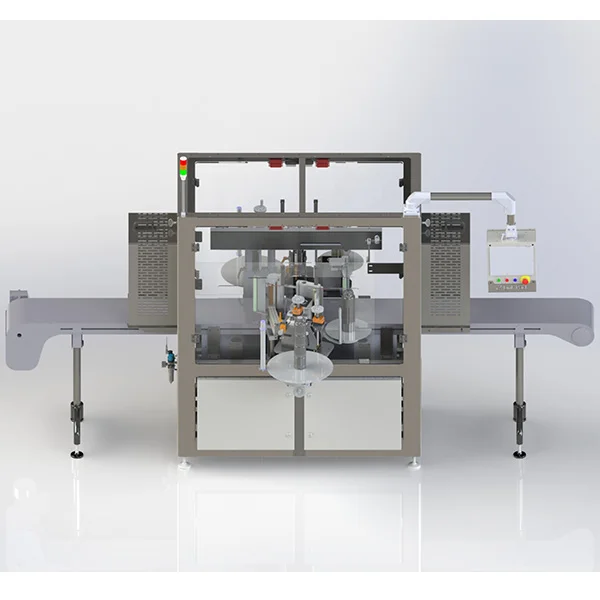

    Link Pack's Paint Can Labeler
